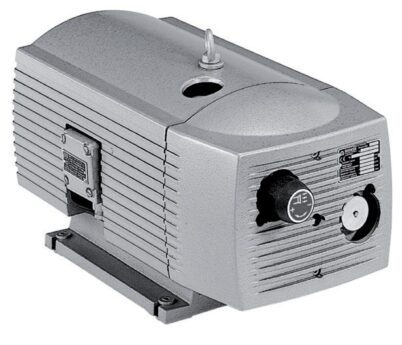

Oil Free Rotary Vane - Vacuum Pump
Well proven, robust design, operating on the rotary vane principle, using self lubricating vanes. The exhausted air is 100% oil free which makes these pumps particularly suitable for paper handling applications where clean, dry air is required. The combined vacuum/pressure versions are the traditional choice for sheet feeders and other printing/finishing machinery.
APPLICATIONS: PRINTING PACKAGING, LIFTING, GENERAL INDUSTRIAL
PRODUCT TABLE
| Pump | Flow [m3/h] | Vacuum [mbar] (abs) | Motor Rating [KW] | Noise Level dB (A) | Weight Kg | Connection Size " |
|---|---|---|---|---|---|---|
| VT 4.2 | 1.9 | 400 | 0.09 | 56 | 7 | G ? |
| VT 4.4 | 4.1 | 150 | 0.18 | 59 | 7 | G ? |
| VT 4.8 | 8 | 150 | 0.35 | 58 | 11.5 | G ? |
| VT 4.10 | 10 | 150 | 0.37 | 60 | 16 | G ? |
| VT 4.16 | 16 | 150 | 0.55 | 61 | 22.5 | G ? |
| VT 4.25 | 25 | 150 | 0.75 | 62 | 26 | G ? |
| VT 4.40 | 40 | 150 | 1.25 | 67 | 38.5 | G ? |
| KVT 3.60 | 55 | 100 | 2.4 | 71 | 69 | G 1 |
| KVT 3.80 | 67 | 100 | 2.4 | 72 | 69 | G 1 |
| KVT 3.100 | 98 | 100 | 3 | 75 | 101 | G 1? |
| KVT 3.140 | 132 | 100 | 4 | 76 | 111 | G 1? |
| VTLF 2.200 | 178 | 200 | 4 | 75 | 280 | G21/2 |
| VTLF 2.250 | 244 | 200 | 5.5 | 77 | 250 | G21/2 |
| VTLF 2.360 | 351 | 250 | 11 | 80.5 | 258 | G21/2 |
| VTLF 400 | 372 | 200 | 11 | 79 | 495 | G 4 |
| VTLF 500 | 498 | 250 | 15 | 81 | 500 | G 4 |
